24ft Electric AC Big Industrial HVLS Ceiling Fan for Warehouse

Contact Now* Send an Inquiry to this supplier.
or
Start Order * Name your price

Browse by Category

Contact us

Kale Environmental Technology Shanghai Corporation
[China]

Address
NO. 688, MINSHEN RD Shanghai Shanghai
Phone
86-181-49732172
Contact name
Chen Min

Quick Information

  • Brand Name: Kale
  • Place of Origin: China
  • Model Number : KL-HVLS-D6BAA73
  • Voltage : 220V/380V/415V
  • Fan blade qty : 5 aluminum fan blade

Description

24ft Electric AC Big Industrial HVLS Ceiling Fan for Warehouse View






Brief Introduction of EURUS Series KALEFANS



    EURUS Series large energy-saving fan is a kind of super fan with a big diameter up to 7.3M/24FT, high volume and low speed(HVLS).

    With a electricity power of 1.5kw or less, 5 pieces magnalium new Kale Airfoil Blades™ are able to drive a mass of air to ventilate and cool in 1400m2 area.

    Compared with traditional small fans and air conditioners, EURUS Series KALEFAN has imcomparable advatanges:energy-saving, environment-friendly, large area cover, comfortable feeling etc.

    EURUS Series is widely used in industrial places, factories, warehouses, farms and other high large spaces.






750



Product Main Parameter



Specifications

12ft(3.6m)

16ft(4.9m)

20ft(6.1m)

24ft(7.3m)

Model

D6BAA36

D6BAA49

D6BAA61

D6BAA73

Max Air Volume

10350m³/min

11250m³/min

12150m³/min

13050m³/min

Max Speed

95RPM

75RPM

65RPM

55RPM

Fan Body Weight

65KG

80KG

105KG

120KG

Power

1.1KW

1.5KW

1.5KW

1.5KW

Full-load Amps

2.4amps/380V

4.2amps/220V

2.4amps/380V

4.2amps/220V

3.5amps/380V

5.7amps/220V

3.5amps/380V

5.7amps/220V



Note:
1. Weight: the weight doesn't contain control box, top connection parts etc.

2. Noise: sound level measured in a distance of 1m from the motor, electromagnetic noise is less than 40DB.
3. Area cover: effective area with average wind speed at 0.5m/s above, actually measured in open area.



Product Main Components





                                                    Main Components
LENZE motor.jpg Motor System---imported Germany LENZE motor
1.Low backlash assembly process and gear grinding technique, lower noise
2.Strength the bearing frame structure, increase oil seal and strength the motor structure with trapezoidal shaft structure, higher safety
3.Adopt IE2 high efficient motor, save more 5-10% than IE1
4.Passed CCC, CE, UL certificates

Control Sytem (VFD Controller)

1. Schneider electrical sets, with safety protection module inside which will interrupt the output automatically in case of some accidents.
2. Germany Rittal control cabinet, passed EMC by SGS and CCC certificates, meanwhile, passed anti-creeping tests which shields electromagnetic interference effectively.
Protection level is IP55, passing UL, EMC, LVD, ROHS certificates.

3. YASKAWA VFD, JapanInternational Brand

hub.jpg Driving Hub                                                                                             Adapt imported aluminum material and formed through 1500T hot forging+CNC lathe processing+CNC precious machincing technology. Processed by CNC, the precision error of chassis is within 100μm, making sure the precise dynamic balance.
connector .jpg Jacketed Connector (independent development)                                Use aircraft grade 7050 hard aluminum material which is handled with heat to guarantee strength and toughness.It stood millions fatigue tests to avoid the problems of fan blade dropping due to long-time running.

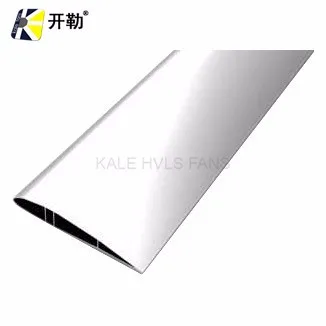

Patented Kale Airfoil Blades™ Fan Blade

High strength aircraft grade magnalium, fluorocarbon paiting on surface, aerodynamic fan blade design. Patented Fan blade design: 3 sets reinforcing rib supports system inside, enhance the strength of fan blades and avoid sagging of fan tail and fatigue loss of connecting components.

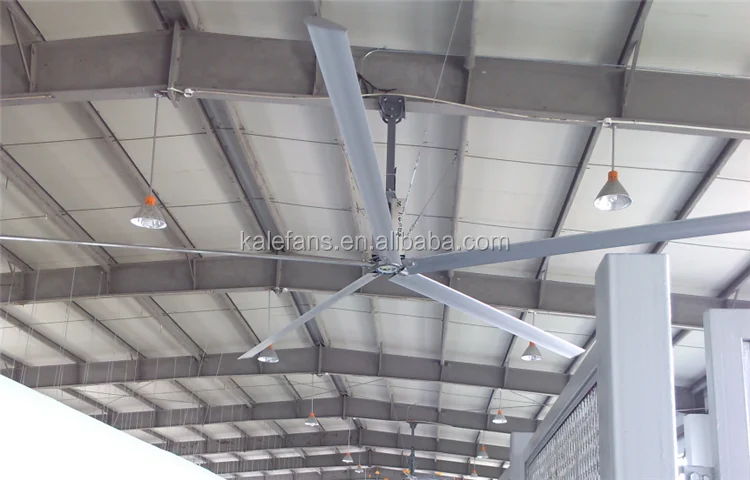

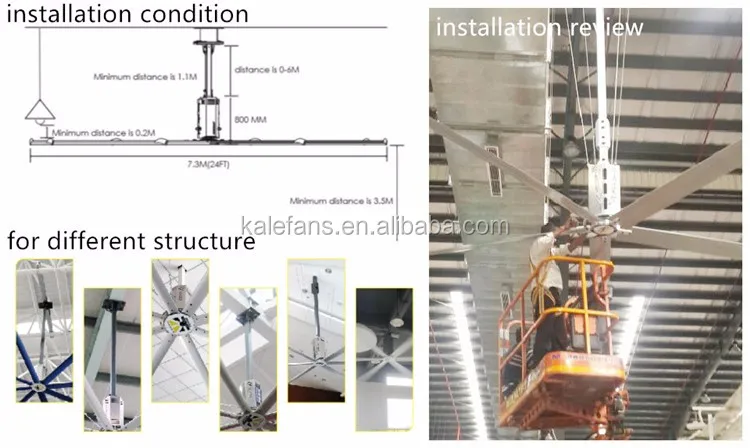

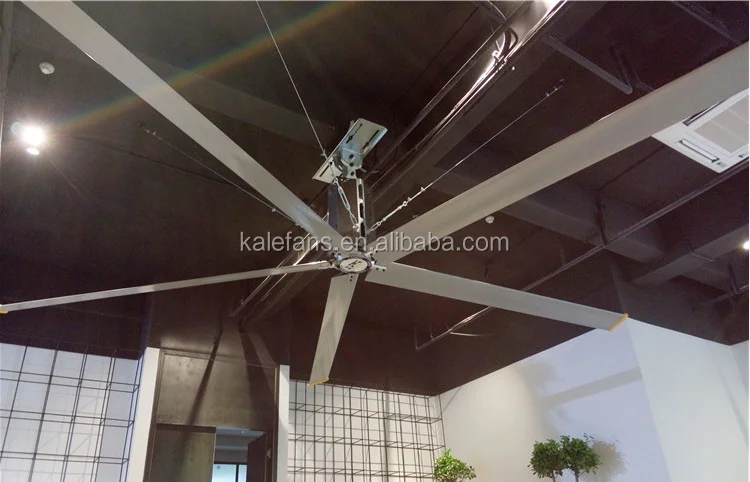

Installation Condition and View

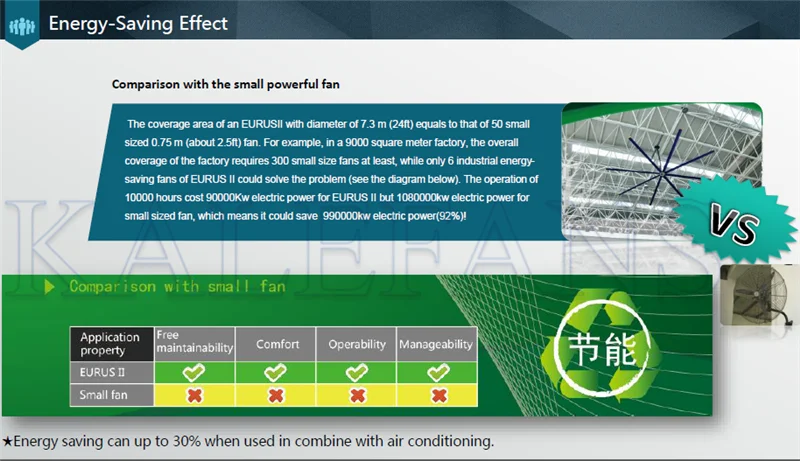

Energy Efficieny Explanation





Area Coverage



Model Area Coverage/m2              Suggest Installation Height/m
HVLS-D6BAA73 1400-2000 7-12
HVLS-D6BAA61 800-1400 6-10
HVLS-D6BAA49 600-800 5-8
HVLS-D6BAA36 400-600 4.5-7.5



Packaging & Shipping



Packing Details
MODEL PKG/UNIT DIMENSION GROSS WEIGHT/UNIT
HVLS-D6BAA73 2 wooden cases          1. motor crate: 950X830X520MM              2.blade crate:3700X420X450MM 250 KG
HVLS-D6BAA61 2 wooden cases         1. motor crate: 950X830X520MM             2.blade crate:3100X420X450MM 230 KG
HVLS-D6BAA49 2 wooden cases         1. motor crate: 950X830X520MM             2.blade crate:2500X420X450MM 210 KG
HVLS-D6BAA36 2 wooden cases         1. motor crate: 950X830X520MM             2.blade crate:2000X420X450MM 190 KG





Product Package



eurus packing





Cases










Factory View






Certificates



ceiling fan certificates.png

Our Services

     June Chen

    Skype: chenminjune

    Phone: +86 18149732172(whatsapp)

    Email: chenmin at kalefans.com



FAQ



Q: Are you the factory?

A: Of course, we are a factory focusing on large ceiling fans based in Haining, China, be your direct fan supplier.



Q: How long is the delivery time?

A: Normally 3-5 working days.



Q: How long is the warranty?

A: We offer 3-year warranty to guarantee the quality. Most importantly, its service life is 12-15 years.


Price

  • Price Condition : FOB
  • Price : USD3000 / 1
  • Delivery Port : shanghai

Packaging & Delivery

  • Minimum Order : 1

Product Image

  • 24ft Electric AC Big Industrial HVLS Ceiling Fan for Warehouse image
